Dt-swiss DT Swiss G 1800 Spline® DB 25 SHIMANO HG / SRAM XD™ Gravel-Hinterrad 27,5“/650B

Be ready for UNPAVED ADVENTURES!
With the launch of their gravel-dedicated system wheels, the wheel specialists of the traditional manufacturer DT Swiss have opened up a new territory that used to be reserved for mountain bikers in the past but today fascinates adventurous road cyclists.

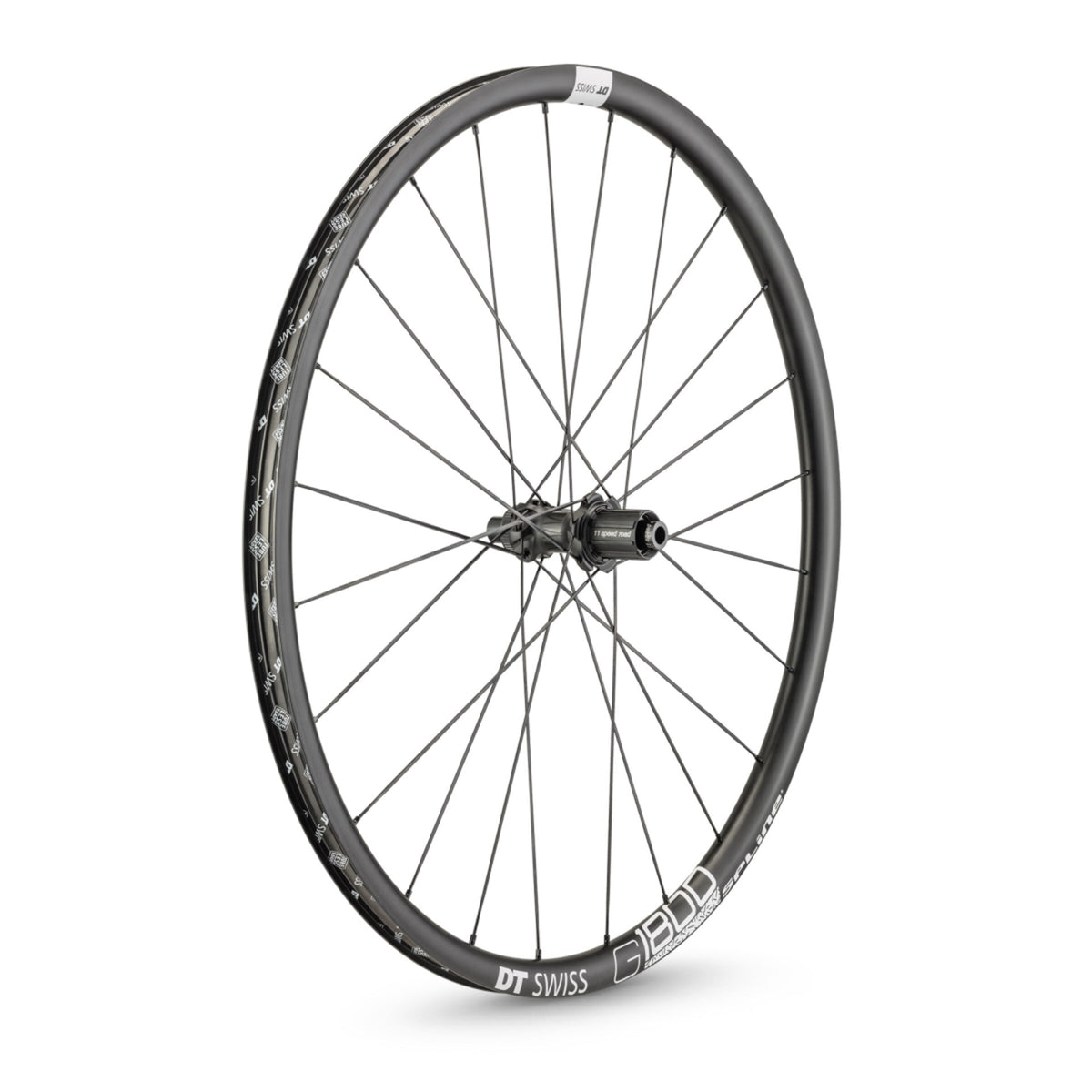

The G 1800 Spline® DB 25 rear wheel represents the entry into DT Swiss’ special wheel family and opens the door to a completely new world away from tarmac and paved roads.
The robust alloy rim is lightweight, stiff and impresses with outstanding durability for your first adventures on the gravel roads of the world. In this way, it perfectly combines riding dynamics with fun without burdening your budget. An inner rim width of 24mm additionally provides a large tyre volume, which takes the comfort on demanding gravel roads to a new level.
Optimised for use with powerful disc brakes, the rim rotates around the proven DT 370 rear hub that provides reliable propulsion and good power transfer thanks to solid bearings and a reliable 3-pawl freehub system. Aerodynamic DT Swiss aero comp® straight pull and DT Swiss new aero® straight pull bladed spokes give the entire wheel system a perfect balance of comfort and stiffness.

For maximum off-road performance, the DT Swiss G 1800 Spline® DB 25 wheel also offers excellent tubeless compatibility. When used without tubes, you’ll benefit from less weight, improved puncture resistance, reduced rolling resistance and increased comfort, since you can ride with lower air pressure on unpaved roads.
So leave the paved roads behind and discover unknown territory. The G 1800 Spline® DB 25 rear wheel is a reliable companion!


Technologies:

• TUBELESS:
All DT Swiss wheels are tubeless ready. The profiles of the DT Swiss rims are specially designed for tubeless use. The rim profile makes it easier to fit the right tyre and ensures a perfect fit. The tubeless system of the rim consists of DT Swiss tubeless ready tape for sealing and a DT Swiss tubeless valve in a length that complies with the rim. When using tubeless ready tyres, a compatible sealant must be used. However, it is also possible to use a conventional combination of tyre and inner tube.

• BEARINGS:
Having learned from years of experience, DT Swiss only uses durable cartridge bearings without bearing play adjustment. DT Swiss hubs are designed to have the optimum axial and radial bearing play when they are properly installed. The correct preload of the bearings to compensate for the clamping force of the wheel mounting system is the basis for a play-free hub with minimum friction.

• PRO LOCK®:
DT Pro Lock® prevents the spoke-nipple connection from loosening. In the Pro Lock® process, a special dual component adhesive is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and then hardens completely within a few hours. Re-truing the wheel is possible, yet it will cause a slight decrease in the adhesive power each time.

Technical details:

Rim:
• Wheel size: 27.5" (650B)
• Rim material: aluminium
• Rim type: clincher (symmetrical)
• Brake type: disc brake
• Rim depth: 25 mm
• Rim width: 28 mm
• Inner rim width: 24 mm
• ETRTO: 584 - 24
• For Presta valve (Ø 6.5 mm)
• Tubeless ready
• Suitable for tyre widths: 30 - 69 mm

Spokes and nipples:
• Spoke type: DT new aero® straightpull (right), DT aero comp® wide straightpull (left)
• Number of spokes: 24 pcs
• Spoke pattern: 2-cross
• Nipples: DT Swiss Pro Lock® Squorx ProHead aluminium

Hub body:
• 370, Spline®, 4 sealed cartridge bearings
• For disc brakes
• Aluminium freehub and body
• CenterLock brake rotor mount (IS 6-bolt with adapter, e.g. prod. code: 2283716)
• 3-pawl freehub system

Axle:
• Rear axle: 12 x 142 mm (thru axle)

Sprocket compatibility (with pre-mounted SHIMANO HG Spline L freewheel):
• SHIMANO 8-/9-/10-/11-speed Road/MTB cassettes and SHIMANO ROAD 12-speed cassettes
• SRAM 8-/9-/10-speed Road/MTB cassettes
• SRAM 11-speed Road cassettes
as well as other SHIMANO HG-compatible sprockets.

Cassette compatibility (with optional SRAM XDR™ freehub body):
• SRAM XDR™ 12-speed road cassettes
• SRAM XD™ 11-/12-speed MTB cassettes (requires separately available 1.85 mm spacer ring!)
as well as other SHIMANO HG-compatible cassettes.

Weight:
• Weight: approx. 971 g
• ASTM classification: 2 (suitable for use on and off the road and for drops of up to 15 cm)
• Max. system weight: 130 kg (cyclist, bike, gear and luggage)

In the box:
• 1 DT Swiss GR 1800 Spline® DB 25 rear wheel
• 1 DT Swiss SHIMANO HG Spline L freewheel body (pre-assembled)

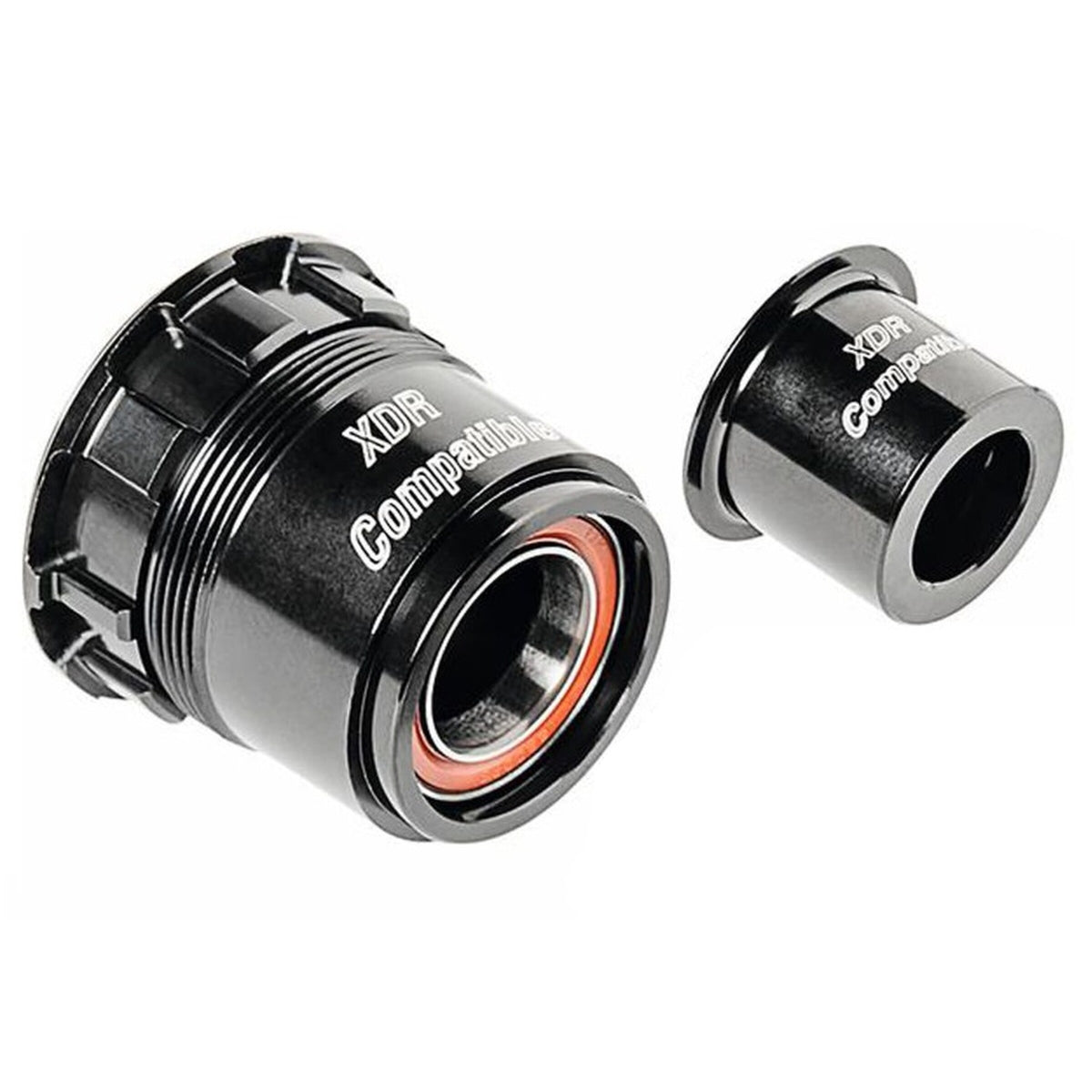

• 1 DT Swiss SRAM XDR™ freewheel body
• 1 DT Swiss Tubeless Ready rim tape 27 mm
• 1 DT Swiss tubeless valve 32 mm


Tip:
The freewheel body can be exchanged without tools. A how-to video from DT Swiss on changing the freehub body can be found here:
https://www.dtswiss.com/de/support/how-to-videos
You can find the DT Swiss special grease you may need under prod. code: 226341701
