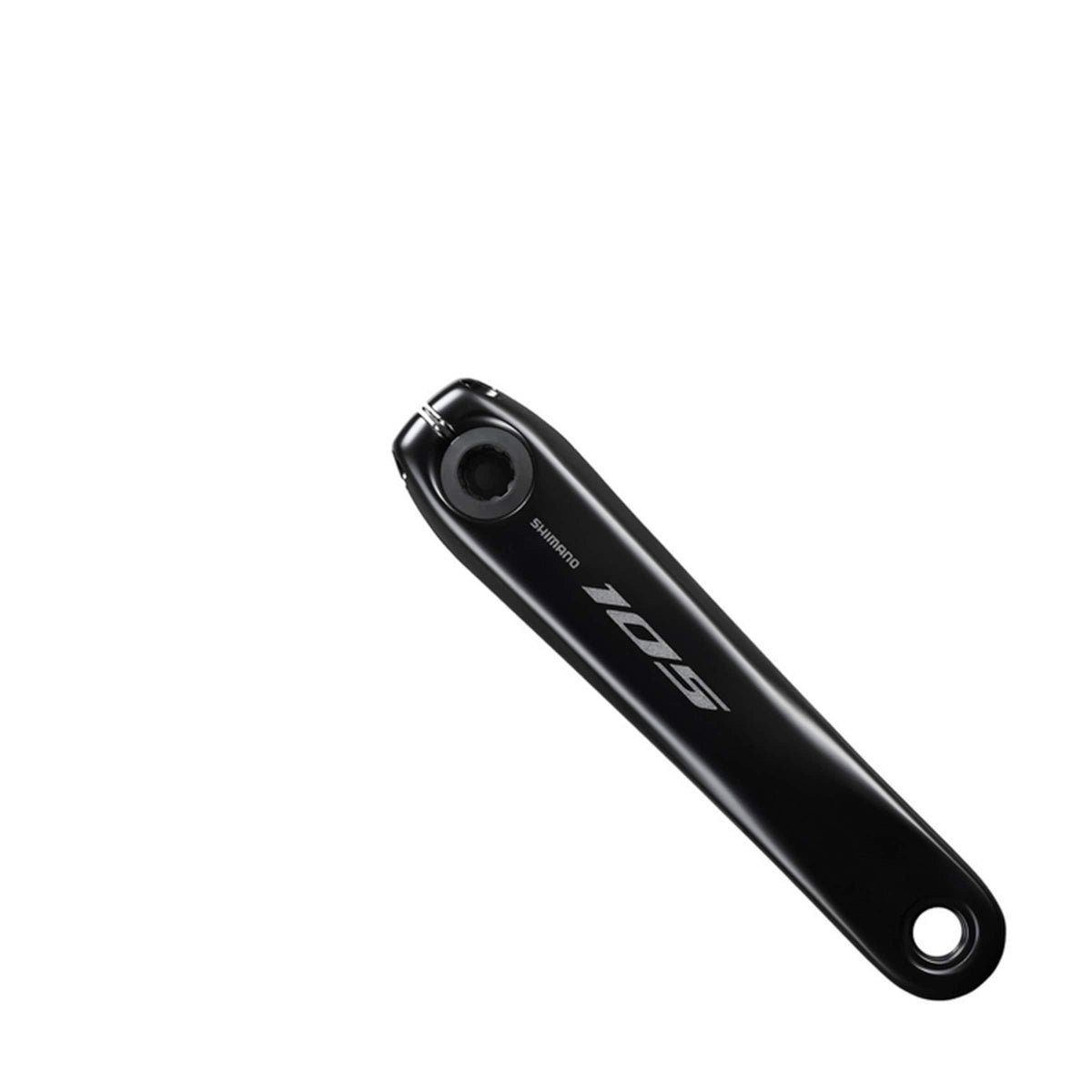

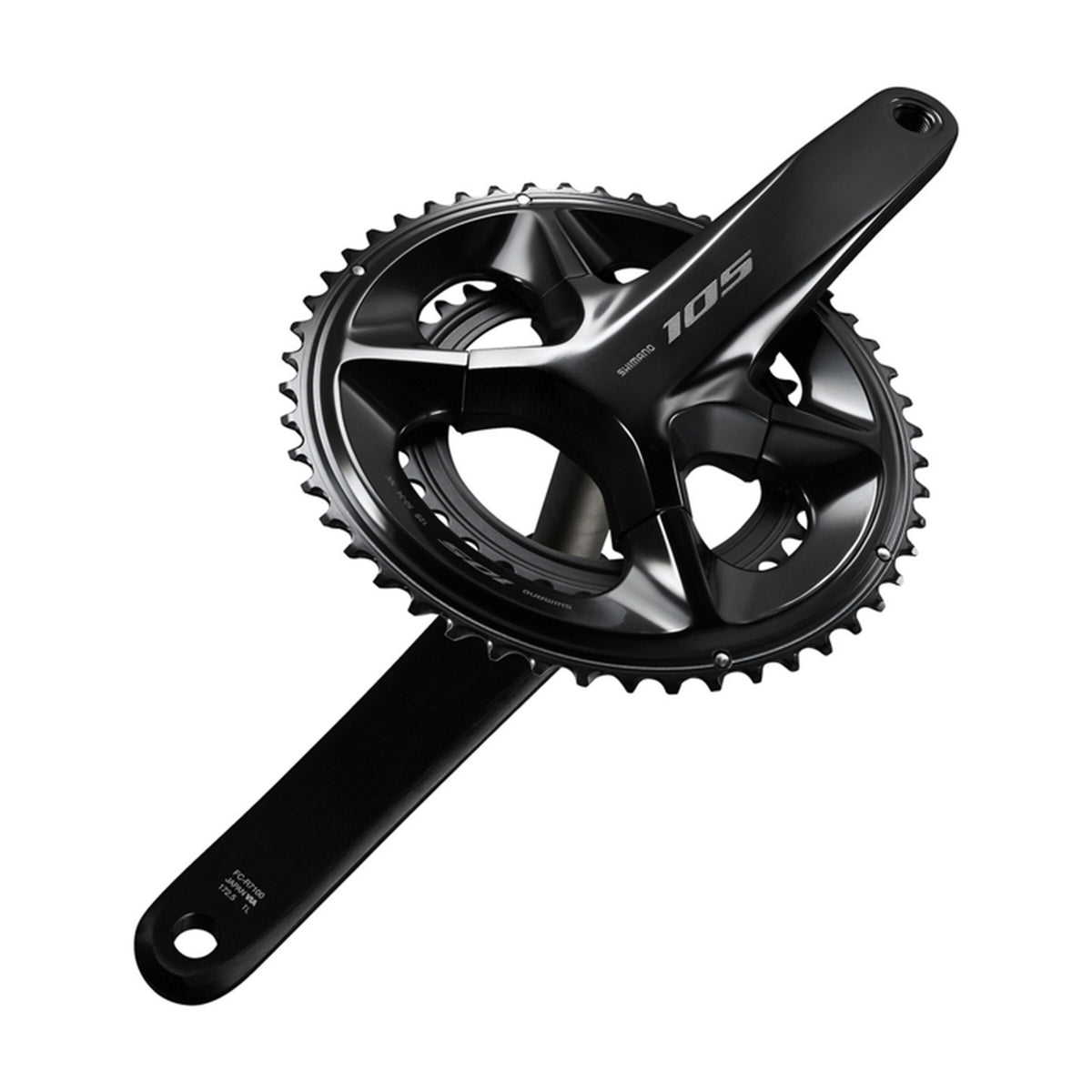

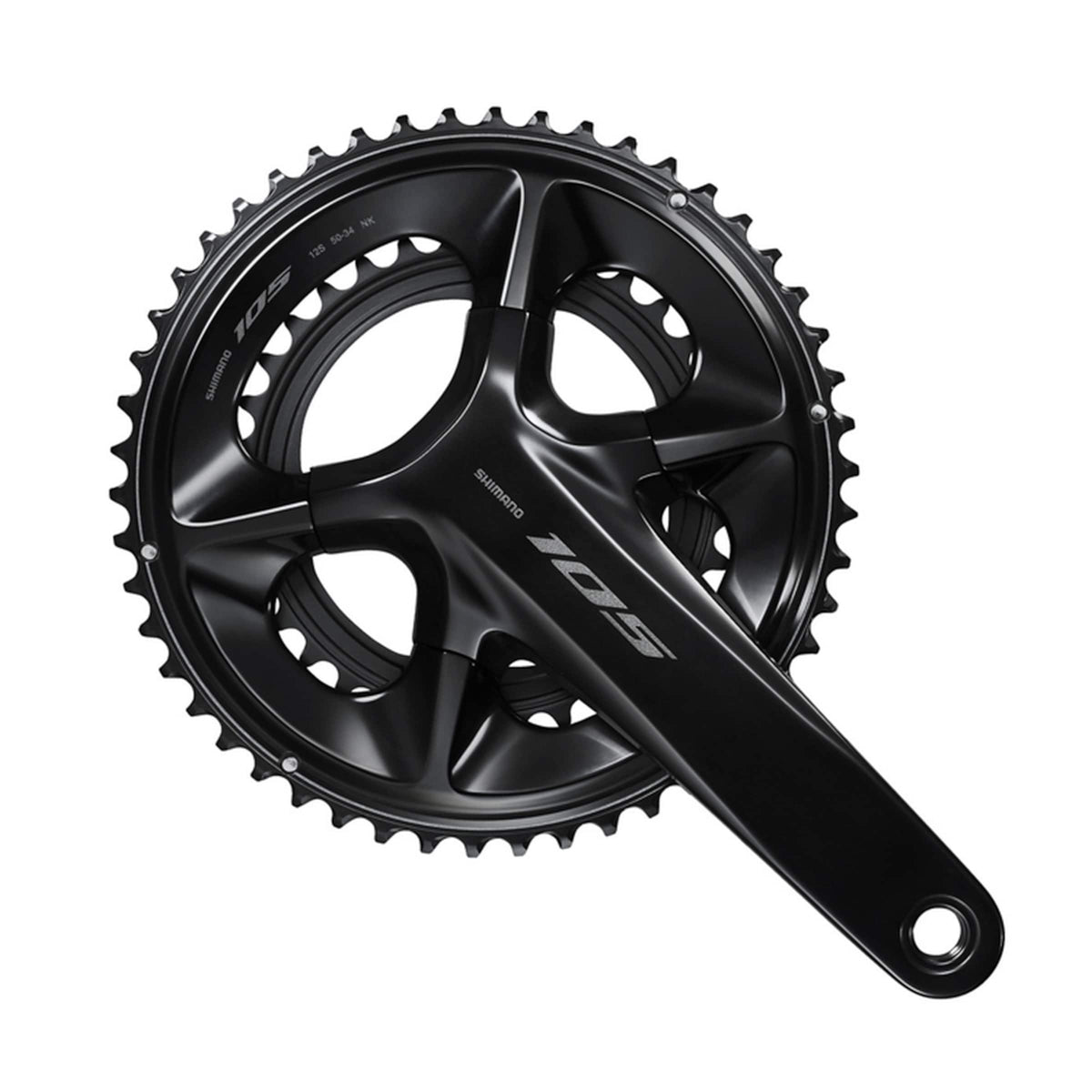

SHIMANO 105 FC-R7100 Hollowtech II Crankset Double/12-Speed
SHIMANO 105 FC-R7100 Hollowtech II Crankset Double/12-Speed
Regular price
$94.06 USD
Regular price
$114.00 USD
Sale price
$94.06 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SHIMANO 105 Di2 is here!
With the R7150 series, SHIMANO is also giving the 105 groupset its 12th gear as well as integration into the electronic Di2 system – raising its best-selling road bike shifting group to the next level for its 40th anniversary.
The matching crankset is SHIMANO’s FC-R7100. The visually appealing 4-arm construction with hollow-forged crank arms and integrated Hollowtech II axle stands for an optimal ratio of weight and stiffness for maximum drive efficiency. The cranks and chainrings themselves are made of anodised aluminium, while the fibreglass-reinforced plastic ribs on the back of the large chainring embody the SHIMANO 105's special structural design, which allows for significant weight savings with crisp shifting performance.
With a difference of 16 teeth, the chainrings in combination with the matching 12-speed cassettes from SHIMANO ensure a high bandwidth with fast and easy gears and fine gear jumps at the same time. This way you have enough reserves uphill and downhill and always stay close to your preferred cadence.
Details:
• Crankset for SHIMANO 12-speed road bike drivetrains
• Two-piece Hollowtech II design with integrated axle
• Hollow forged aluminium crank arms
• 4-arm construction for efficient power transmission
Technical details:
• Intended use: Road bike
• Series: 105
• Model: FC-R7100
• Material crank arms: aluminium (hollow)
• Material chainring: aluminium/composite (large), aluminium (small)
• Gears: 2x12 speed
• Axle: integrated (Hollowtech II)
• For a shell width of: 68 / 70 mm (for threaded bottom brackets)
• Bolt circle: 110 mm/ 80 mm (asymmetric)
• Chainline: 44.5 mm
• Q factor: 148 mm
• Weight: approx. 754 g (50-34T)
Available gear ratios:
• 50 - 34 teeth
Available with crank arm length:
• 170 mm
• 172.5 mm
• 175 mm
Please indicate your choice.
Recommended bottom bracket:
• SM-BBR60 (BSA)
• SM-BB72-41B (Pressfit)
Recommended chain:
• CN-M7100 (HG 12x)
In the box:
• 1 SHIMANO 105 FC-R7100 crankset double/12-speed (WITHOUT bearing cups)
